Uni-silic

Product rating: Not rated yet. Be first!

Your rating:

Gas

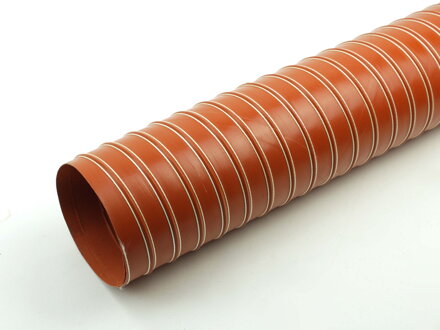

Two-layer silicone hose with temperature resistance up to +310°C and high chemical resistance. Use in the automotive industry, granulate dryers, extraction of hot air or steam, military, aviation and space industries. The wall is made of silicone-coated glass fabric and the skeleton is made of a copper-plated metal spiral.

146,12 € incl. VAT

146,12 € incl. VAT Discount 0 €

146,12 € incl. VAT / m

Quantity discounts

m and more: /m

Select diameter

Add to Favourites

Add to list

You need to login first

Availability: Shipping in 2-5 days
Delivery date:

Characteristics

	Used for gaseous media
	Chemically resistant
	Temperature resistance up to +310°C
	Flexibility- ★★★★☆
	Smoothed inside
	Standard length: 4m

hose profile

Technical parameters

Application	- for gaseous and solid substances - extraction of hot and cold air, gases, water vapor, vapors from chemical compounds - for ventilation and exhaust systems - extraction of fine particles such as dust, powder, pollen, etc. - in the rubber industry for granulate dryers, etc. - for devices with requirements for chemical resistance and high temperatures
Wall material	Fiberglass fabric both-sided coated with Silicone
Instructions for using hoses	HERE

Parameters of all produced diameters

Product catalog	Inner diameter [mm]	Outer diameter [mm]	Bending radius [mm]	Pressure [bar]	Vacuum [bar]	Approx. weight [kg/m]
USILIC B 019	19	22	19	2,5	0,585	0,13
USILIC B 022	22	25	22	2,5	0,585	0,15
USILIC B 025	25	30	25	2,5	0,585	0,18
USILIC B 032	32	36	32	2,5	0,585	0,22
USILIC B 038	38	43	38	2,5	0,585	0,25
USILIC B 041	41	46	41	2,5	0,565	0,29
USILIC B 044	44	49	44	2,5	0,565	0,31
USILIC B 051	51	56	51	2,5	0,5	0,33
USILIC B 057	57	62	57	2,4	0,5	0,39
USILIC B 060	60	65	60	2,4	0,5	0,4
USILIC B 063	63	68	63	2,4	0,45	0,42
USILIC B 065	65	70	65	2,4	0,45	0,49
USILIC B 070	70	75	70	2,3	0,45	0,5
USILIC B 076	76	81	76	2,3	0,4	0,53
USILIC B 080	80	85	80	2,1	0,4	0,56
USILIC B 083	83	88	83	2,1	0,4	0,59
USILIC B 089	89	94	89	2,1	0,395	0,61
USILIC B 095	95	100	95	2	0,395	0,66
USILIC B 102	102	107	102	1,9	0,305	0,71
USILIC B 110	110	115	110	1,7	0,29	0,81
USILIC B 114	114	119	114	1,6	0,28	0,85
USILIC B 121	121	126	121	1,5	0,27	0,89
USILIC B 127	127	132	127	1,4	0,22	0,93
USILIC B 140	140	145	140	1,3	0,18	1,02
USILIC B 152	152	158	152	1,2	0,17	1,2
USILIC B 160	160	166	160	1,1	0,14	1,31
USILIC B 165	165	171	165	1	0,13	1,39
USILIC B 180	180	186	180	0,9	0,11	1,51
USILIC B 203	203	209	203	0,7	0,09	1,65
USILIC B 229	229	235	229	0,5	0,058	1,9
USILIC B 254	254	260	254	0,4	0,04	2,14
USILIC B 305	305	311	305	0,4	0,02	2,58

Tolerance for the parameters contained in this catalog except diameters is 5%. All parameters apply for room temperature. To discharge static electricity, ground the spiral. It is possible to make a hose with a non‑standard diameter (not included in the basic offer) on a special request. The standard lengths of the hoses are measured while maximum extension.
